EL ECTRONIC 12-CHANNEL COUNTER
產品類別：藥錠 膠囊數粒機
產品型號：CVC 1220CS (SERVO-DRIVEN FL APS)
產品介紹：

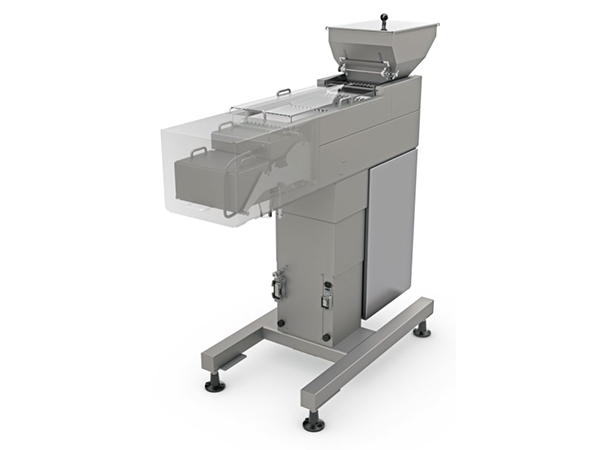

The CVC1220CS is our newest Electronic Channel Counter designed for high speed, highly accurate counting of tablets, capsules, and soft gels. The system has been upgraded with servo- driven flaps to improve accuracy of pre-count functions.
In addition, the servo system adds to longevity of the assembly and reduce the requirement to replace pneumatically driven actuators.
服務熱線：0512-83636368
在線咨詢
立即詢問
- 機臺特色
- 產品參數
- 可用選項
STANDARD FEATURES
●12 V-shaped channels per head (tool less change over)
●Auto dust compensation and dual dust extraction ports
●Powered height adjustment and track- ful/emply sensors
●2.83M-motorized single lane sanitary conveyor (single head)
●4.95M-motorized dual lane sanitary conveyor (dual head)
●Rejection System
●Memory capacity for up to 1000 jobs(*Requires Touch Screen cortollr) ISO 9001:2000 certified
●21CFR Part 11 Compliant FEATURE BENEFITS
●Independenty contolled by servo motors Provide precise and absolute control
●High accuracy positioning and low-noise level
●Prolong life expectancy of drive unit
●Reduce the frequency for replacement
| CVC 1220CS Technical Speci?cations |
| Speed | Up to 55 bpm on a count of 100 products |
| Hopper Capacity | 30 L |
| Bottle Height | 1?" to 7?” (38mm-197mm) |
| Bottle Diameter | ?” to 4" (19mm-100mm) |
| Power Source | 220V, 50/60 Hz, Single Phase |
| Power Consumption | 4 Amp |
| Air Pressure | Minimum 87 psi (ISO 8573-1) |
| Air Consumption | 7 cfm (200 L/sq. cm) |
| Machine Dimensions | 5'-10" x 2'-3" x 6'-2" (1776mm x 680mm x 1870mm) (L x W x H) |
AVAIL ABL E OPTIONS
●Channel blocker
●Container upside down or fallen sensor
●Floor loaded pre-feeder with integrated controls
●Hopper level control system with tower lamp
●Industrial PC, Windows 10
●Static eliminator bar
●Dual counting heads are available
●Vision Inspection (OEM)
