PL ASTIC FOAM STOPPER INSERTER

產品類別:棉花 海棉塊塞入機

產品型號:CVC 1115

產品介紹:

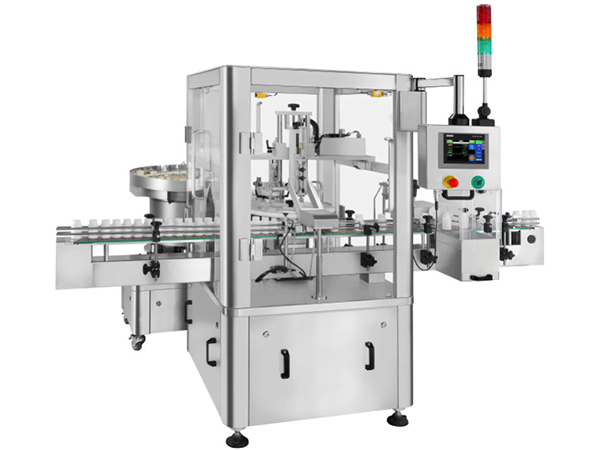

The CVC 1115 Plastic Foam Stopper Inserter at Ispeed of up to 70 insertions per minute. The system is designed to comply with cGMP requirements and is controlled by Siemens PLC.

服務熱線:0512-83636368

在線咨詢 立即詢問
  • 機臺特色
  • 產品參數
  • 可用選項
STANDARD FEATURES
●Servo motor and Siemens PLC Controlled
●No-botle no-fill
●Vibratory Feeder Bowl
●Safety guards with automatic machine stop
●Emergency Button
●Pneumatic gating with container detection
●Quick and easy change over
●cGMP compliance
●Type 304 stainless steel bin, frame,enclosure panels
●ISO 9001:2015 Certified
CVC 1115 Technical Speci?cations
Speed Up to 70 Bottles per Minute(BPM) with single insertion per head
Bottle Height 1?" to 4?" (40mm - 120mm)
Bottle Diameter 1?" to 3?" (40mm - 80 mm)
Neck Opening 1?" to 3" (40mm - 75 mm)
Foam Height ?" to ?" (15mm - 20 mm)
Foam Diameter 1?" to 3" (40mm - 75 mm)
Power Supply 220 V/ 50 HZ/ 3 PH
Power Consumption 1950 W
Air Consumption 200 L/min (7 CFM)
Air Pressure 6 kgf/cm2 (87psi) (ISO 8573-1)
Machine Dimension 8'-2" x 6'-8" x 5'-9" (2500mm x 2025mm x 1758mm) (L x W x H)
Net Weight (KGS) 1000 Kg
Noise Level 70~78 db
AVAIL ABLE OPTIONS
●Motorized sanitary conveyor (6" wide belt available)
●Missing plastic foam detection & reject system
●Tower lamp
●21 CFR Part 11 License
