INLINE CAPPER

產品類別：理蓋旋蓋機

產品型號：CVC 1205

產品介紹：

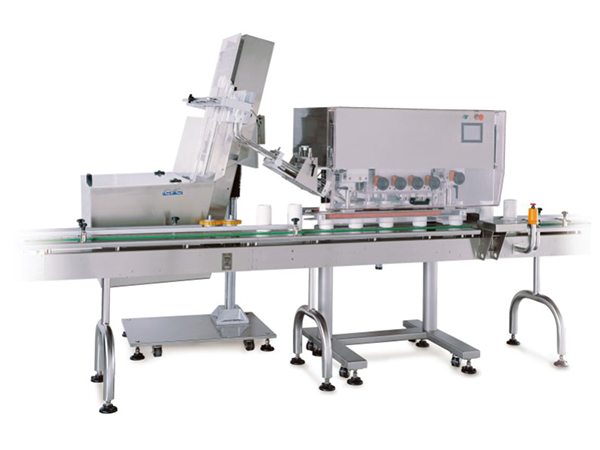

The CVC 1205 Capper is a very flexible machine designed to apply and tighten screw-on caps onto containers at rates of up to 120 bottles per minute. The CVC 1205 is Siemens PLC controlled. Options include tower lamp, hopper |level control, cap inspection (level cap, foil seal, and no cap), reject, and reject verification.

服務熱線：0512-83636368

在線咨詢 立即詢問
  • 機臺特色
  • 產品參數
  • 可用選項
STANDARD FEATURES
●PLC Controlled
●Memory capacity for 10 jobs
●Cap tightening station with 3 sets ofspindles
●9.1 cu ft. integrated cap hopper elevator
●ISO 9001:2000 certified
CVC 1205 Technical Speci?cations
Speed Up to 120 Bottles per Minute(BPM)
Cap Type Plastic screw and CRC
Cap Height ?” to ?” (13mm - 19mm)
Cap Diameter 1” to 4 ?” (25mm - 108mm)
Bottle Height 2" to 8" (51mm to 203mm)
Bottle Diameter 1-?” to 4 ?" (32mm - 114 mm) (maximum 7?” bottle diameter on a 6" wide conveyor)
Bottle Body Height 2" (51mm) below the shoulder
Power Source 220V, 50/60 Hz, Single Phase
Power Consumption 7.5 Amp
Air Pressure Minimum 85 psi (ISO 8573-1)
Air Consumption 15-20 cfm
Machine Dimensions 5'-3" x 3'-8" x 7'-5" (1591mm x 1105mm x 2264mm) (L x W x H)
Machine Weigh 926 lbs. (420kg)
Hopper Weight 397 lbs. (180kg)
Noise Level 78 dB
AVAIL ABLE OPTIONS
●Motorized sanitary conveyor (6" widebelt available)
●Tower lamp, hopper level control
●Cap inspection package (level cap, nocap, foil presence)
●Rejection system, reject confirmation
●Dual-belt gripping system
●21 CFR Part 11 License
