INL .INE CAPPER
產品類別：理蓋旋蓋機
產品型號：CVC 1206
產品介紹：

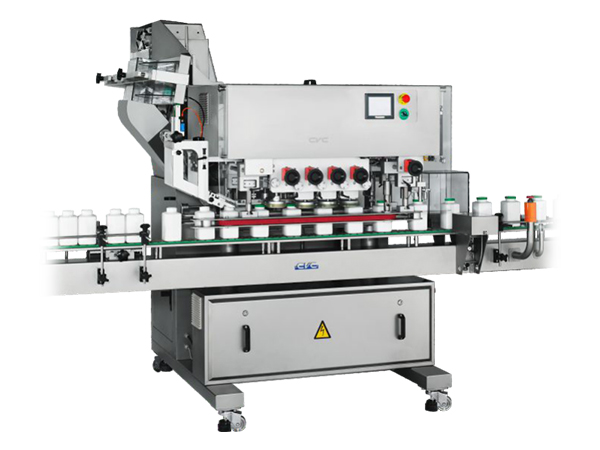

The CVC 1206 Capper is a very flexible machine designed to apply and tighten screW-on caps onto containers at rates of up to 150 bottles perminute. The CVC 1206 is Siemens PLC controlled. The system is designed with two pair of belt tightening belt assemblies. Options include tower lamp, hopper level control, cap inspection (level cap, foil seal, and no cap), reject, and reject verification.
●Built to cGMP standards
●Stainless steel construction
●Quick and easy change over
服務熱線：0512-83636368
在線咨詢
立即詢問
- 機臺特色
- 產品參數
- 可用選項
STANDARD FEATURES
●Siemens PLC Controlled
●Cap tightening station with 2 belt tighteningsystems
●9.1 cu ft. integrated cap hopper elevator
●ISO 9001:2000 certified
| CVC 1206 Technical Speci?cations |
| Speed | Up to 120 Bottles per Minute(BPM) |
| Cap Type | Plastic screw and CRC |
| Cap Height | ?” to ?” (3mm - 22mm) |
| Cap Diameter | 1-?” to 2-?” (30mm - 70mm) |
| Bottle Height | 2" to 7-?" (50mm to 200mm) |
| Bottle Diameter | 1-?” to 4?" (30mm - 114 mm) (maximum 7?” bottle diameter on a 6" wide conveyor) |
| Bottle Body Height | 2" (51mm) below the shoulder |
| Power Source | 220V, 50/60 Hz, Single Phase |
| Power Consumption | 7.5 Amp |
| Air Pressure | Minimum 85 psi (ISO 8573-1) |
| Air Consumption | 15-20 cfm |
| Machine Dimensions | 5'-3" x 3'-8" x 7'-5" (1591mm x 1105mm x 2264mm) (L x W x H) |
| Machine Weigh | 1684 lbs. (764kg) |
| Hopper Weight | 397 lbs. (180kg) |
| Noise Level | 78 dB |
AVAIL ABLE OPTIONS
●Motorized sanitary conveyor (6" widebelt available)
●Tower lamp, hopper level control
●Cap inspection package (level cap, nocap, foil presence)
●Rejection system, reject confirmation
●Dual-belt gripping system, 21 CFR Part 11 License
