CAP RETORQUER

產品類別：理蓋旋蓋機

產品型號：CVC 1208

產品介紹：

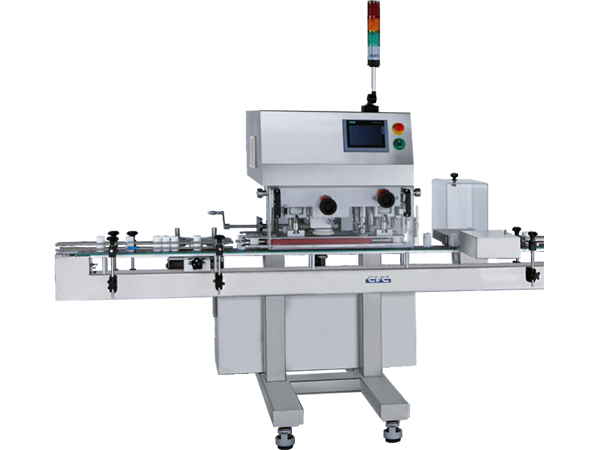

The CVC 1208 In-Line Cap Retorquer is designed to retighten screw-on caps after induction sealing at speeds of up to 120 bottles per minute. The 1208 is Siemens PLC controlled. Options include tower lamp, servo torque metering, reject, and reject verification.

服務熱線：0512-83636368

在線咨詢 立即詢問
  • 機臺特色
  • 產品參數
  • 可用選項
STANDARD FEATURES
●PLC Controlled
●Cap tightening station with 1 sets of spindles
●ISO 9001:2000 certified
CVC 1208 Technical Speci?cations
Speed Up to 120 Bottles per Minute(BPM)
Cap Height ?” to 1 ?” (13mm - 37mm)
Cap Diameter 1 ?” to 4 ?” (28mm - 108mm)
Bottle Height 2" to 8" (51mm to 200mm)
Bottle Diameter 1 ?” to 4 ?" (28mm - 114 mm) (maximum 7 ?” bottle diameter on a 6" wide conveyor)
Power Source 220V, 50/60 Hz, Single Phase
Power Consumption 3 Amp
Air Pressure Minimum 85 psi (ISO 8573-1)
Air Consumption 3 cfm with rejection
Machine Dimensions 3'-8" x 3'-6" x 7'-5" (1115mm x 1071mm x 2264mm) (L x W x H)
Machine Weigh 728 lbs. (330kg)
Noise Level 75 dB
AVAILABLE OPTIONS
●Motorized sanitary conveyor (6" wide  belt available)
●Tower lamp, torque metering (servo motor)
●Rejection system, reject confirmation
●21 CFR Part 11 License
