AUTOMATIC CARTONER
產品類別:裝盒包裝機
產品型號:CVC 1600
產品介紹:

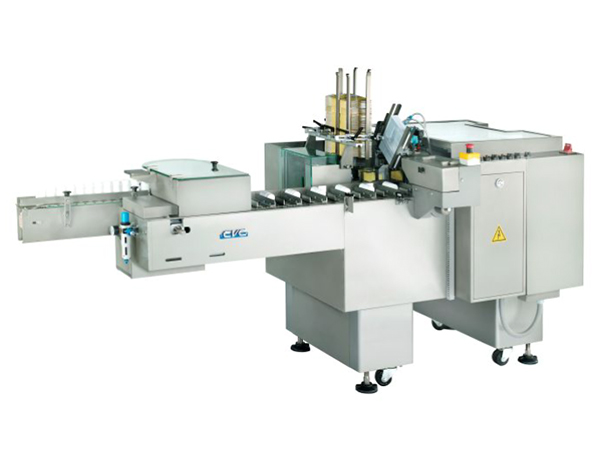

The CVC1600 Automatic Horizontal Cartoner is a compact, intermittent motion machine designed to form, load, and close various types of cartons. The 1600 is adaptable with standard assemblies for running bottles, tubes, or blister cards. Available options include Leaflet insertion and lot/date code embossing on the carton flap. The base machine is designed to run tuck closures but glue closure options are available. The 1600 can be run stand alone or integrated as part of an automated packaging line.
服務熱線:0512-83636368
在線咨詢
立即詢問
- 機臺特色
- 產品參數
- 可用選項
? Stainless Steel Construction
? Flexible Changeover
? Adjustable Bucket Style Conveyor
? Manual or Auto Loading
? Tuck Closures
? PLC Control
? Touchscreen HMI
| CVC 1600 Technical Speci?cations |
| Speed | Up to 60 Bottles per Minute(BPM) |
| Carton Height | ?" to 2 ?" (19mm - 70mm) |
| Carton Length | 2" to 8 ?" (50mm - 216mm) |
| Carton Width | ?" to 4" (19mm - 101mm) |
| Leaflet Width | ?" to 1 ?" (19mm - 38mm) |
| Leaflet Length | 2 ?" to 8 ?" (70mm - 209mm) |
| Power Source | 220V, 50/60 Hz, Single Phase |
| Power Consumption | 7 AMP |
| Air Pressure | Minimum 87 psi (ISO 8573-1) |
| Air Volume | 1 cfm (Plant air must be dry and clean) |
| Air Consumption | 7 cfm (200 L/sq. cm) |
| Machine Dimenslons | D 3'-8" x 2'-2" x 6'-11" (1104mm x 650mm x 2090mm) (L x W x H) |
AVAILABLE OPTIONS
? Glue closure (Nordson)
? In-feed/out-feed conveyor
? Leaflet insertion
? Lot/date code embossing on carton flap
? SIEMENS PLC control upgrade
