SHRINK BUNDLER & HEAT TUNNEL

產品類別：裝盒包裝機

產品型號：CVC 1661 / CVC 1651

產品介紹：

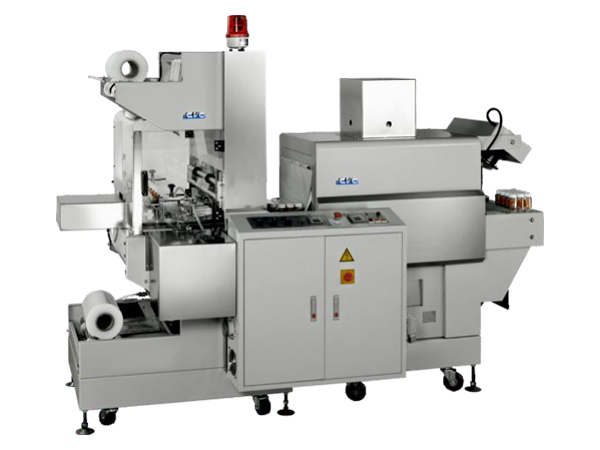

The CVC 1661/1651 Shrink Bundler & Heat Tunnel is a user friendly, compact machine designed to shrink bundle small and medium sized products. Machine options include multiple in-feed configurations and a single or double discharge depending upon rate requirements. The 1650/1651 is an ideal machine for the Nutraceutical, Pharmaceutical, Food and Beverage Markets.
? Built to cGMP Standards
? Painted Steel or Stainless Steel
Construction
? Economical Value
? Quick & Easy Change Over

服務熱線：0512-83636368

在線咨詢 立即詢問
  • 機臺特色
  • 產品參數
  • 可用選項
STANDARD FEATURES
? Painted Steel or Stainless Steel onstruction
? Single, indexing product loader and 2-Sided Sealer
? Integrated Heat Shrink Tunnel
? Quick product size changeover
? Machine on casters for ease of movement
? Light, compact design
? Rate: Dependent upon bottle matrix
CVC 1661 Technical Speci?cations
Speed Up to 100 Bottles per Minute(BPM)
Single-Bundle Loader 1 ?" to 4 ?" (30mm - 110mm)
Max width: 16” (410mm)
Max length: 14” (355mm)
Max height: 8 ?" (222mm)
Two-Bundle Loader
Max width: 11 ?” (292mm)
Max length: 9 ?" (247mm)
Max height: 8 ?" (222mm)
Film Roll Specs:
Single-Bundle Loader
Max roll width: 20 ?” (520mm)
Two-Bundle Loader
Max roll width: 11” (279mm)
Max roll outer diameter: 11 ?” (292mm)
Power Source 220V, 50/60 Hz, 3 Phase
Power Consumption 50-75 AMP
Air Pressure Minimum 87 psi (ISO 8573-1)
Air Volume 280L (Plant air must be dry and clean)
AVAILABLE OPTIONS
? Product Change Part
? Variable Speed Drive for In-feed conveyor
? 1.0M Outlet Gravity Roller Conveyor, SUS 304 Stainless
