TOP / BOTTOM LABELER
產品類別：上/下貼/側貼貼標機
產品型號：CVC 220
產品介紹：

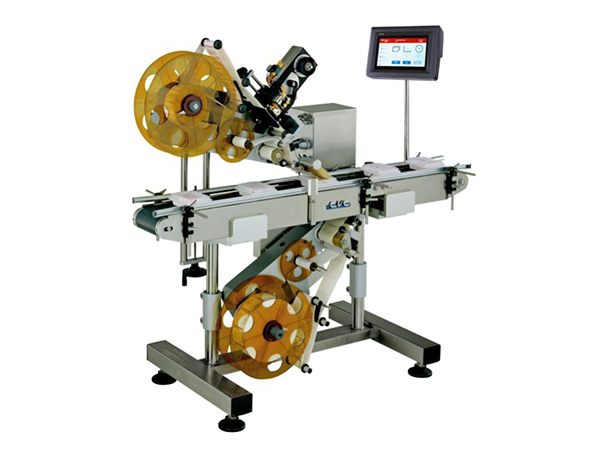

The CVC 220 Top & Bottom Labeler is built to automatically pressure sensitive labels onto two sides of flat and indented containers. The 220 comes standard with a 6” wide belt conveyor and is ideal for contract packagers and manufacturers serving the nutraceutical, food, cosmetic, personal care, and consumer electronic markets. All CVC labelers include our patented Self Set? software which utilizes a high frequency encoder for extremely easy setup and wrinkle free labeling at the touch of a button.
服務熱線：0512-83636368
在線咨詢
立即詢問
- 機臺特色
- 產品參數
- 可用選項
STANDARD FEATURES
? Self-Set Auto Adjusting Control System
? Stainless Steel Frame on lockable casters ? Stainless Steel flatbed conveyor, 6” wide endless green belt
? Touchscreen HMI
? Label head with up to ± 1/32” accuracy (*bottles / containers dependent)
? Label Sensor for Paper or Opaque Labels
? Capacity: up to 150 bottles per minute (BPM)
| CVC 220 Technical Speci?cations |
| Speed | Up to 150 Bottles per Minute (BPM) |
| Product Height | 1" to 7?" (25mm - 184mm) |
| Product Width | 1" to 10" (25mm - 254mm)
dependent on conveyor width |
| Product Length | 1" to 16" (25mm - 406mm) |
| Label Width / Height | ?" to 6" (16mm - 152mm)
dependent on label head type |
| Label Length | ?" to 10" (16mm - 254m) |
| Label Roll | Max 14" (356mm) outside diameter with 3" core |
| Dispense Speed | Max 16 meters / min. |
| Conveyor Width | Standard 6" (Configurable 10") |
| Conveyor Length | Standard 55 ?” |
| Conveyor Bed Height | Standard 36" (± 2") |
| Power | 110V, Single Phase, 5 Amp (220V optional) |
| Air Pressure | Minimum 85 psi |
| Air Consumption | 4 cfm (for optional reject and Lot/Date printer) |
| Machine Weight | 175 kg |
AVAILABLE OPTIONS
? Hot Stamp (Lot/Date Coding)
? Integrated Thermal Encoder (Lot/Date, Bar Code and Graphics)
? Clear, Metallic or Color Label Sensor
? Dataflex or similar Lot/Date Code Printer ? End to End transfer plates
? Infeed and Outfeed Conveyor Extensions ? Separator wheel for controlled spacing
