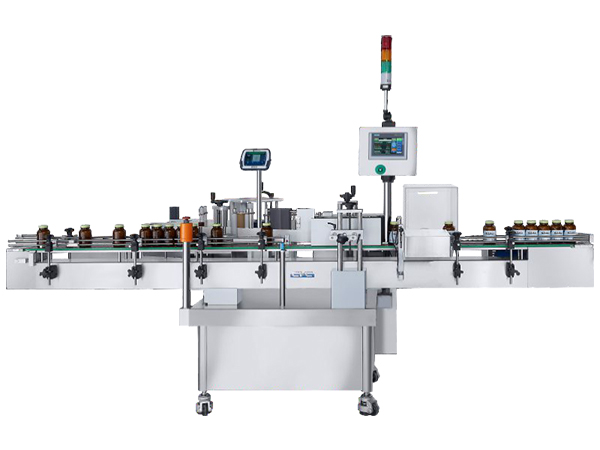

HIGH SPEED WRAP LABELER
產品類別：圓瓶貼標機
產品型號：CVC 302
產品介紹：
The CVC 302 High Speed Wrap Labeler is built to automatically apply pressure sensitive labels onto round containers at up to 200 bottles per minute. The 302 is servo motor controlled, comes standard with a touch screen HMI, and can be ordered with various inspection options including bar code verification, vision, and missing label detection. The 302 is an ideal machine for contract packagers and manufacturers serving the pharmaceutical, nutraceutical, and food markets.
The CVC 302 can run stand alone or integrated into a full packaging line.
服務熱線：0512-83636368
在線咨詢
立即詢問
- 機臺特色
- 產品參數
- 可用選項
STANDARD FEATURES
? Self-Set Auto Adjusting Control System
? Stainless Steel Frame on lockable casters
? Stainless Steel sanitary bed conveyor with 4" wide ground down table top chain.
? Touchscreen HMI
? Label head with up to ± 1/32" accuracy (*bottle dependent)
? Integrated Wrap Station
? Servo motor with PLC controls
? Adjustable Tilt for Tapered Bottles
? Label Sensor for Paper or Opaque Labels
? Product Sensor w/ Opaque & Clear Bottle Mode
? Variable Speed Separator Wheel
| CVC 302 Technical Speci?cations |
| Speed | Up to 150 Bottles per Minute (BPM) |
| Bottle Height | 1" to 12" (25mm - 305mm) |
| Bottle Diameter | 1" to 7" (25mm - 178mm)
dependent on conveyor width |
| Label Width / Height | 3/8" to 7" (10mm - 178mm)
dependent on label head type |
| Label Length | ?" to 12" (13mm - 305mm) |
| Label Roll | Max 16" (356mm) outside diameter with 3" core |
| Dispense Speed | Max 75 meters / min. |
| Conveyor Width | Standard 4" (also available in 6") |
| Conveyor Length | Standard 121" (also available in 94" sanitary) |
| Conveyor Bed Height | Standard 36" (+/- 2") |
| Power | 220V, 50/60 Hz, Single Phase, 6 Amp |
| Air Pressure | Minimum 85 psi (ISO 8573-1) |
| Air Consumption | 4 cfm (for optional reject and Lot/Date printer) |
| Machine Weight | 350 kg |
AVAILABLE OPTIONS
? Hot Stamp (Lot/Date Coding)
? Integrated Thermal Encoder (Lot/Date, Bar Code and Graphics)
? Bottle Rejection System (Air Blow or Cylinder)
? Clear Label Sensor ? Custom Wrap Belts ? Feed Screw
? Infeed and Outfeed Conveyor Extensions
? Laser Bar Code Verification
? Loading and Collecting Turn Tables
? Low Label Sensor (Factory Installed Only) ? Missing Label Detection System (UV)
